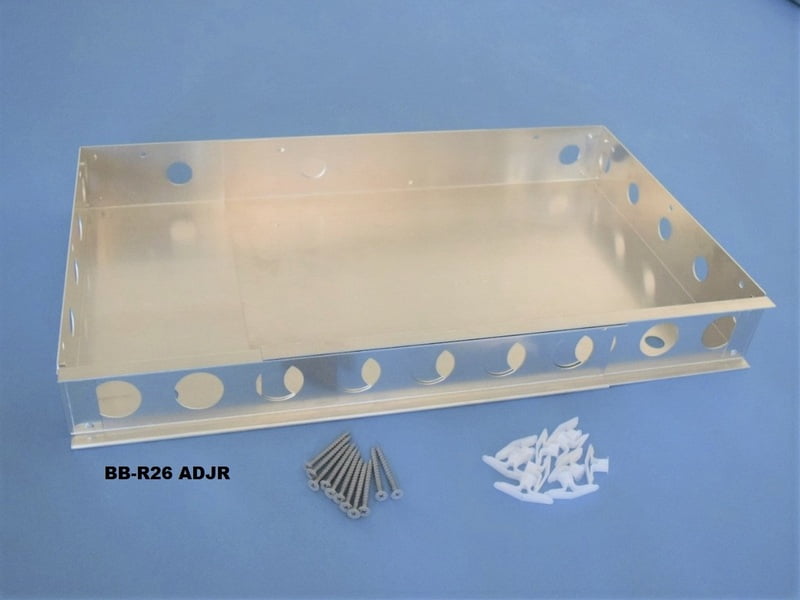

Adjustable Rectangle Bench 33 1/2" to 60" x 14 1/2" x 3" (DIX-BBADJR)
- Quantity
Product Details
The Adjustable Rectangular Bench is a fully independent unit which can be mounted to most vertical surfaces quickly and efficiently, saving the installer valuable time. This self-supporting, one piece frame is easy to install with supplied fasteners and requires no additional waterproofing or structural reinforcement. With a tested weight capacity of 400 lbs when installed to manufacturer's instructions and made of long lasting corrosion resistant material, the Adjustable Rectangular Bench can be installed in wet or dry locations before OR after finish tile is applied!
TO DETERMINE SUPPORT REQUIREMENT, are you mounting the bench...
- Wall to wall up to 36″: No additional support required
- Wall to wall up to 63″: One (1) BT-17 centered in span OR 2 Support Bolts required
- On back wall and one side wall up to 36″: One (1) BT-17 within 6″ of open end OR two (2) Support Bolts required
- On back wall and one side wall up to 63″: Three (3) Support Bolts required
- With no side support up to 36″: Two (2) Support Bolts required
- With no side support up to 48″: Three (3) Support Bolts required
- With no side support up to 63″ (max span of BB-ADJR): Four (4) Supports Bolt required
